A NEW PERSPECTIVE ON LIDAR PHOTONAI / DIGITAL PERCEPTION

Make Every
Machine See.

A world of possibility.
A clearer way forward.

High-resolution LiDAR, priced to scale — from warehouse robots to the open road.

Explore products
Interactive concept point cloud. Explore warehouse, road and terrain scenes using the buttons below.
PHOTONAI / PERCEPTION EXPLORERWAREHOUSE / CONCEPT VIEW

A world, revealed
point by point.

EXPLORE A DIFFERENT PERSPECTIVE
CONCEPT SIMULATION · NOT SENSOR OUTPUT ILLUSTRATIVE DEPTH COLORSCROLL TO EXPLORE

Swipe up to continue. Tap the buttons to change scenes.

01 / THE PRODUCT FAMILY

The right perspective.
For your next move.

Near-field awareness. Long-range vision.
Start with the sensor built around your machine.

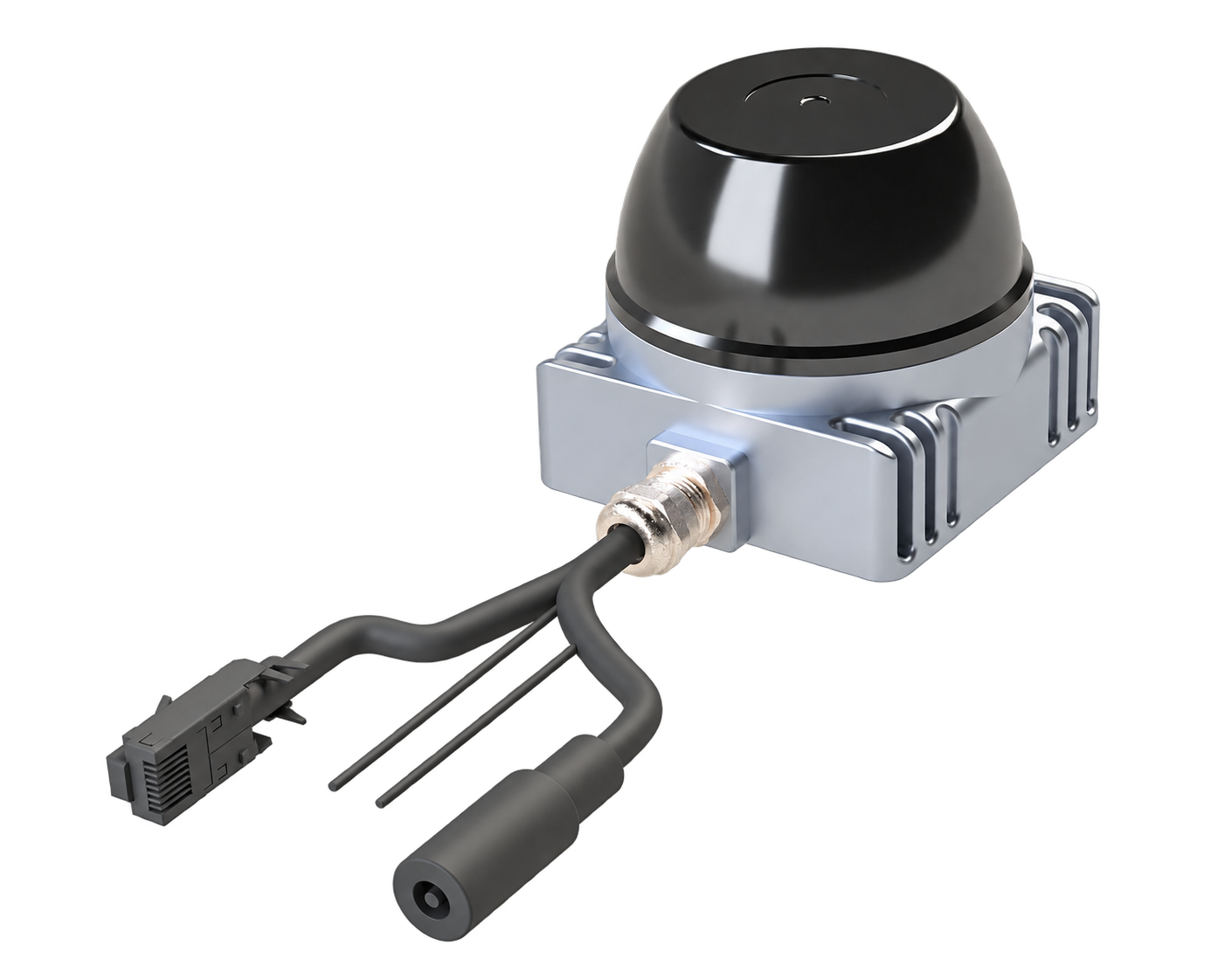

P60 / HEMISPHERICAL LIDARP60 compact LiDAR sensor with cableCOMPACT BY DESIGN. EXPANSIVE BY NATURE.
360° NEAR-FIELD PERCEPTION

Small sensor.
Whole-machine awareness.

A hemispherical view for AMRs, AGVs and autonomous forklifts. Dense 3D perception, right down to the last 10 centimeters.

Field of view
360° × 60°

Surround perception

Blind zone
10 cm

See right up close

Points per second
960k

Dense 3D detail

<260 g Body weight · excl. cable7 W Power96 lines Channels
View technical specifications
Range @ 10% reflectivity
50 m (100 klux)
Maximum range
150 m
Accuracy (1σ)
2 cm, 50% target at 30 m
Angular resolution
0.36° × 0.625° @ 10 Hz
Frame rate
10 Hz
Returns
Dual return
IMU / time sync
Built-in / PPS + GPRMC
Interface
100 Mbps Ethernet, UDP
Supply / power
9–32 V DC / 7 W
Temperature
−40 °C to 60 °C
Protection / eye safety
IP67 / Class 1
Dimensions / weight
65 × 65 × 61.5 mm / < 260 g*

*Excluding cable. Performance depends on operating conditions.

Get P60 brochure

Choose a brochure to complete the short request form below.

02 / WHERE MACHINES MOVE

A clearer view.
A wider horizon.

Different environments. One need to see what comes next.

Autonomous mobile robot in a warehouse aisleILLUSTRATIVE SCENE

Warehouse & intralogistics

AMRs, AGVs and autonomous forklifts navigating aisles, pallets and people.

Quadruped and humanoid robots in a service environmentILLUSTRATIVE SCENE

Service & delivery robots

Compact 3D sensing for delivery platforms, lawn mowers and service robots.

Illustration of vehicle perception on a city streetILLUSTRATIVE SCENE

Automotive & vehicle perception

Long-range forward sensing for vehicle development and autonomy programs.

03 / FROM PHOTONS TO PERCEPTION

Single-photon sensing.
Practical perception.

A digital LiDAR platform for autonomous driving, mobile robotics and automated warehousing.

i / CUT THROUGH THE GLARE

Single photons.
Clearer signals.

Our VCSEL / SPAD digital dToF architecture captures returns at the single-photon level, with ranging performance specified under 100 klux sunlight. Built-in anti-interference helps reduce crosstalk between nearby LiDARs. Dual returns, intensity and per-return confidence give your perception stack more information to work with.

ii / COMMAND NEAR AND FAR

Close-up awareness.
Long-range vision.

Across the PhotonAI lineup, blind zones go as low as 10 cm, detection reaches 200 m at 10% reflectivity and up to 300 m maximum, and point rates reach up to 1.536 million points per second. Dense perception and centimeter-level accuracy support both close-range obstacle avoidance and long-distance detection.

iii / ACCELERATE INTEGRATION

From unboxing
to point cloud.

ROS1 / ROS2 drivers and a C++ SDK provide point clouds, depth images and reflectivity images. Visualization software supports live viewing, recording and playback; sample ROS bag data lets you start debugging before hardware arrives. Ethernet output and time synchronization simplify integration.

iv / FREE UP PAYLOAD

Less weight.
More room to build.

Highly integrated modules make room for batteries, compute and payload. Lightweight models weigh under 260 g, draw as little as 7 W and accept a wide 9–32 V input, giving mobile machines more flexibility in sensor placement and energy use.

Combined capabilities across the PhotonAI lineup. Specifications vary by model and test conditions; see product datasheets for details. Weight excludes cable.

04 / PHOTONAI

Making LiDAR
part of every machine.

From a premium option to standard equipment.

Founded in 2021, PhotonAI Technology Inc. develops high-resolution LiDAR for robot fleets and vehicle programs. Our goal is to make precise 3D perception practical at scale.

Across APD, SPAD and fully integrated digital transceiver technology, our product lineup spans 360° near-field awareness for robots to 192-line forward sensing for vehicles.

Headquartered in Austin, Texas, USA.

Talk to our team
Illustrative LiDAR development workspace with point-cloud displays
From photons to perception. Illustrative development scene supplied in the product brochure.
  1. 2021

    PhotonAI founded

  2. 2025

    192-line LiDAR developed

  3. 2026

    P60 launched for robotics and industrial automation

05 / LET’S BUILD WHAT’S NEXT

See it for yourself.

Tell us about your machine. Get product brochures and tell our engineers a little about your application.

For sales and technical inquiries, please use the form below.

P60 and V192-Pro brochures are available after submission.
